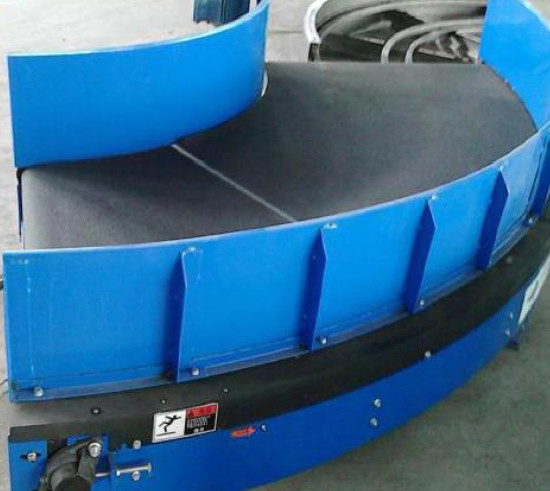

Cure Power for BHS ,

Conveyor belt: effective width 1000mm, annular belt, steel buckle connection, fire rating

ISO 340, Antistatic, flame retardant.

Width of inner channel: About 1040 mm;

Turning radius of center line: 1500mm;

Baffle height: 400mm;

The skirt board in public area is hairline stainless steel plate, with thickness ≥ 2mm;

Conveyor structure: it is of sliding type, and the plate is made of Q235 with thickness ≥ 3.0mm

Steel production, anti-corrosion, spraying, neat appearance, spraying color shall be reported to the user for confirmation; Baseline velocity v=0.38m/s or 0.35m/s;

Load: 120kg/m, dynamic load: 75kg/m;

Noise: ≤ 70dB (a);

Control mode: PLC automatic control.
